For determining the sensitivity of powders to impact stimuli for assessing transport, packaging and regulatory classification.

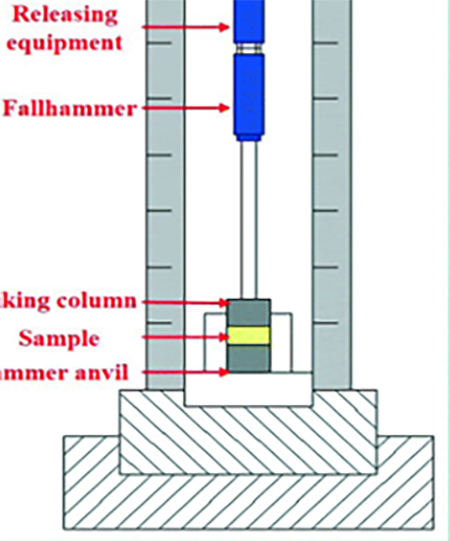

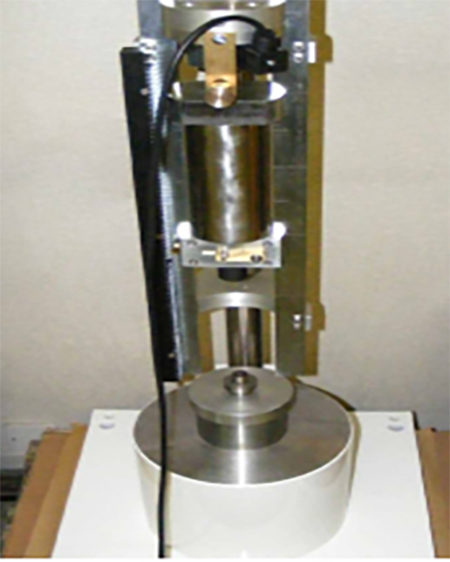

Some powders are deliberately manufactured with highly energetic behavior, but occasionally it is an unexpected property of a new material. For regulatory compliance there are a number of screening tests which have to be performed on new materials in order that they can be safely transported. One such screening is a BAM Fallhammer test, which measures sensitivity to mechanical force.
Specifications
- An upper to lower cylinder distance gauge for 1 - 2 mm sample gap required for liquids
- A central column with guides (graduated scale) ready set for correct height
- A 1 kg drop weight carrier assembly
- A 1 kg weight already fitted to 1 kg drop weight assembly for a 2 kg overall weight
- A 5 kg drop weight carrier assembly
- A 5 kg weight already fitted to 5 kg drop weight assembly for 10 kg overall weight
- A drop weight electromagnetic release device
- An electromagnetic power supply distribution box together with electromagnet 12 V supply cable,100 - 120 V, 220 - 240 V mains inlet supply cable and remote handset for weight release
- Electromagnet safety pin
- A 40 mm3 sample loading spatula
- A polycarbonate protective shield
What data we get ?
|
Observation |
Class |
|
Flash, Flame, or explosion is observed |
Positive |
|
No flame, flash or explosion, melting |
Negative |
