Liquid Conductivity Test
For accurate measurement of the conductivity / resistivity of liquids clothing and other applications.

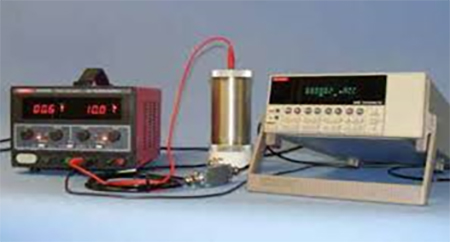

The liquid conductivity test apparatus is used to assess a liquid‘s conductive properties by measuring the current flowing through the material when a known 10 V is applied across it with reference to ground. A heptane reference sample is used to check the equipment prior to conducting a test on liquid sample with no known conductivity data.
Specifications
- 10 V d.c power supply (resolution 0.1 V, accuracy + / - 2 %)
- Picoammeter (2 nA to 20 mA ranges) – 2 nA range has 10 fA resolution + / - 400 fA. Noise 20 fA. Manufacturer‘s calibration certificate supplied

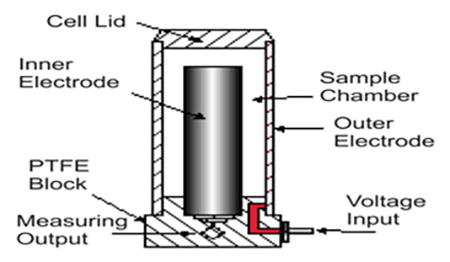

- Custom manufactured liquid conductivity test cell
What data we get?
Liquid conductive, dissipative, Resistively data in Ohm m.
